Primary Category:Ⅰ. Flat type Membrane Switch
Secondary Category 1: Tactile Flat Membrane Switch
Secondary Category 2: Transparent Display Window type Membrane Switch
1. Overall dimension: 185 mm (height) × 115 mm (width)
2. LCD display cut out window: 82 mm × 48 mm
3. Connector: 10 pin silver ink printed PET flat ribbon cable
4. MOQ (Minimum Order Quantity): 100 pieces

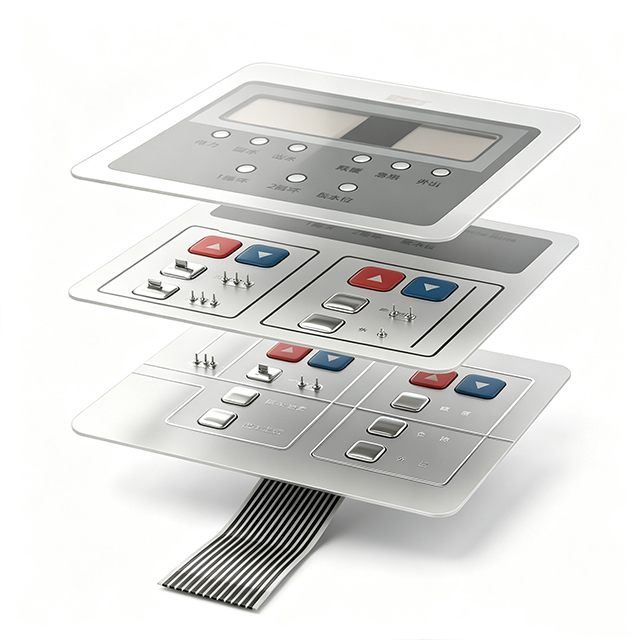

5. Key structure: Built in metal dome tactile buttons with clear pressing feedback

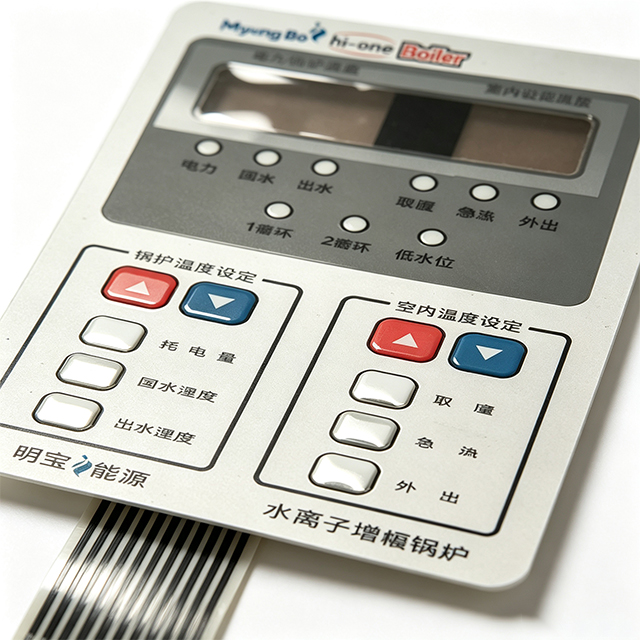

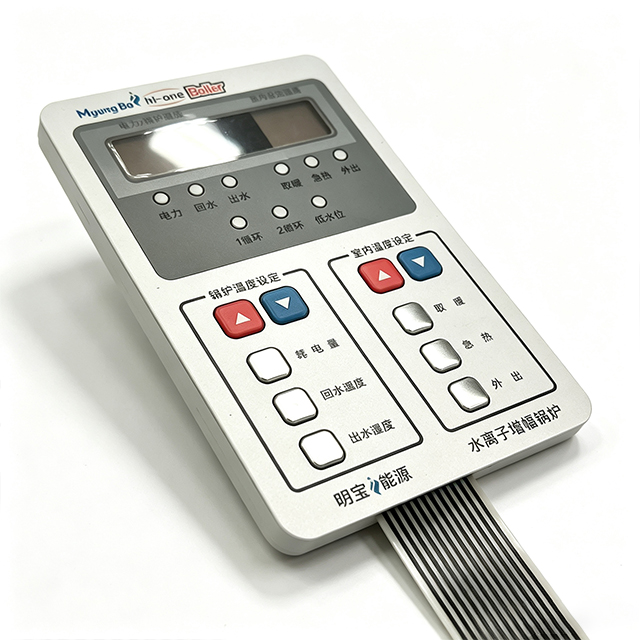

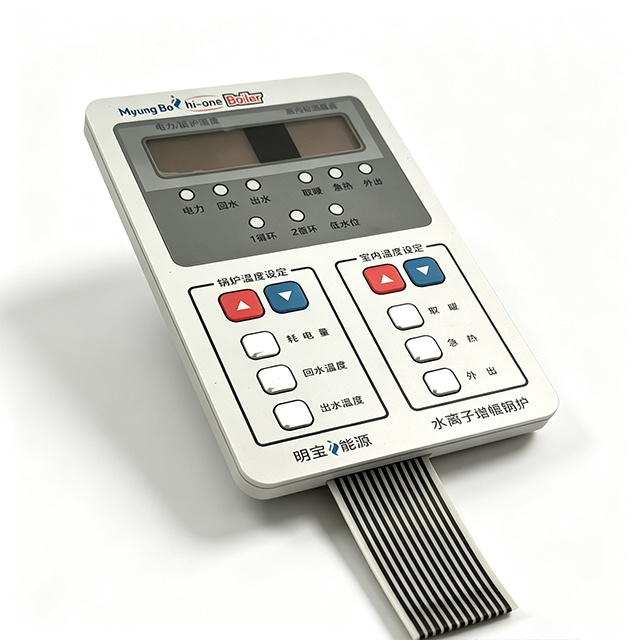

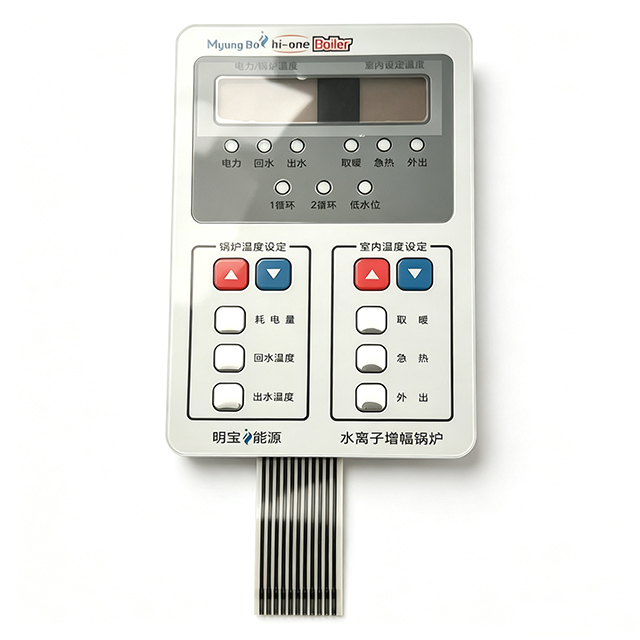

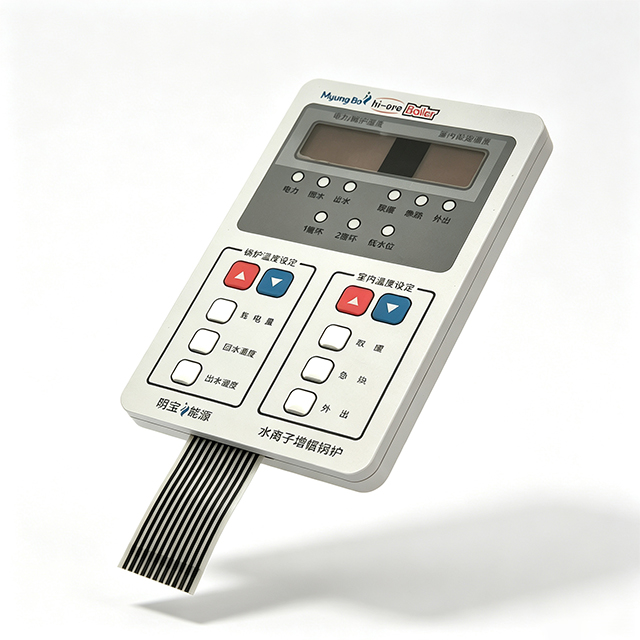

This custom made membrane keypad is specially designed for the operation panel of the heating boiler controller. It belongs to the flat style membrane switch without raised keys. The high gloss scratch resistant PET front panel is silk screen printed with function mark keys, temperature adjust buttons and brand logo. A reserved hollow out window on the top middle position is prepared for the LCD screen to display water temperature, indoor temperature and working state data. All functional keys adopt metal dome contacts for sharp rebound feeling. The silver paste flexible ribbon cable provides stable signal transmission and excellent bending resistance. Custom order service is supported, including panel size, key layout, silk screen logo, cable length and pin quantity.
1. Wear proof and fade resistant PET overlay, suitable for long time indoor equipment use
2. Tactile metal dome switches, more than 100,000 times pressing lifespan
3. Reasonable arranged keys for boiler heating mode and temperature adjustment
4. Durable printed silver ink circuit cable, resistant to repeated folding
5. Custom available, minimum order quantity of 100 units
Electric heating boiler control panel, home heating thermostat keypad, household equipment operation membrane keyboard
Custom Flat Tactile LCD Window Membrane Switch, Heating Boiler Controller Keypad MOQ 100
