Primary category: Flexible Circuit Membrane Switch
Secondary category 1: FPC Integrated Membrane Switch
Secondary category 2: Transparent Display Window type Membrane Switch
1. Overall dimension: 210 mm (height) × 72 mm (width)
2. LCD transparent viewing window size: 75 mm (height) × 57 mm (width)

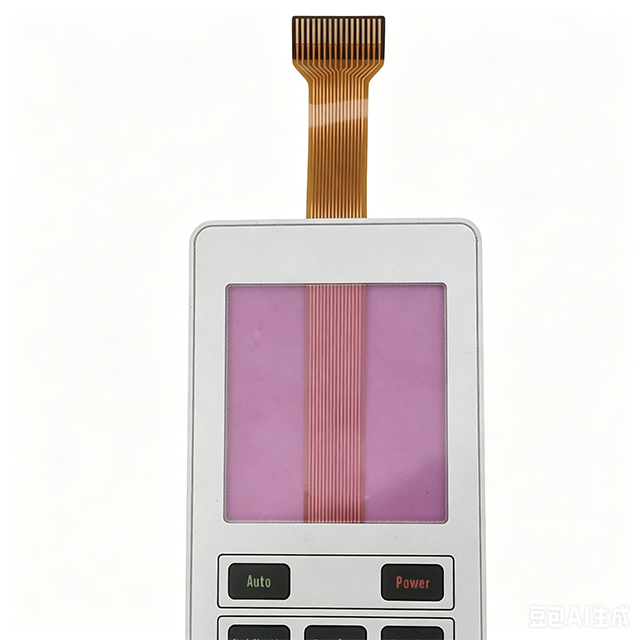

3. Connector: 28 pin gold plated FPC flexible ribbon cable
4. Minimum Order Quantity (MOQ): 100 pieces
5. Button structure: Metal dome tactile keys with clear pressing feedback

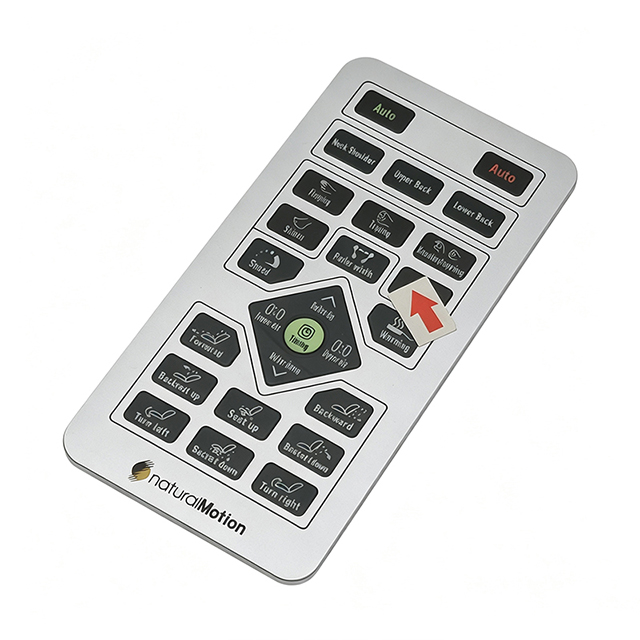

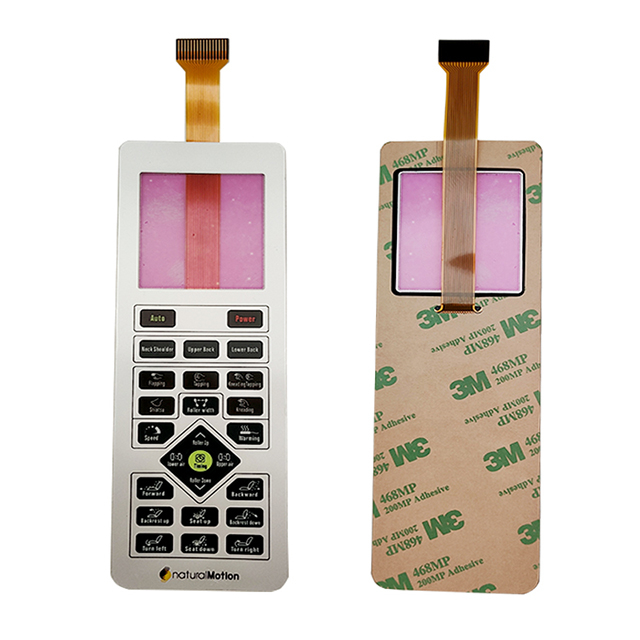

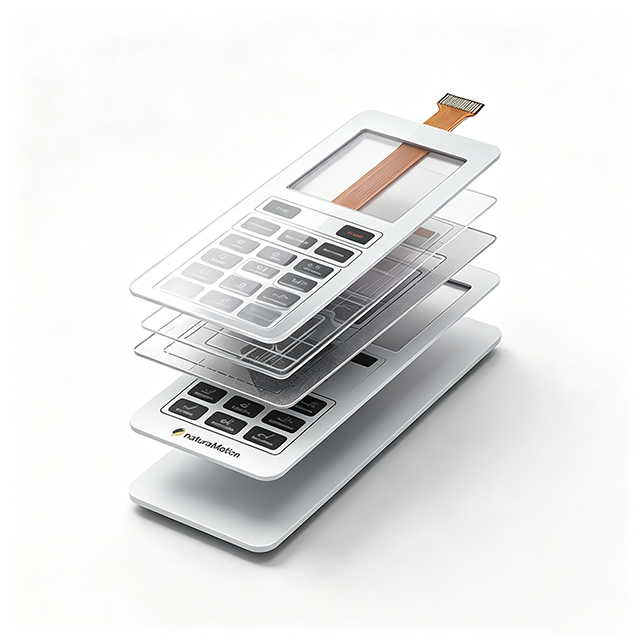

This customized membrane keypad is specially designed for the handheld remote controller of a massage chair. It adopts an integrated FPC flexible circuit structure. The golden finger flexible flat cable features outstanding bending resistance and stable signal transmission after repeated plug and pull operations. A reserved transparent display window is reserved on the upper middle panel for fitting the LCD screen. All functional keys are metal dome tactile buttons, delivering distinct rebound feeling while pressing. The front face panel is made of wear resistant PET material with silk screen printed button texts and brand logo. Multiple massage mode adjustment keys and navigation directional keys are laid out reasonably for convenient one hand operation. Custom made service is supported, including panel size, key layout, FPC pin quantity, cable length, surface logo and button word customization.
1. One piece FPC flexible circuit, compact structure, easy to assemble inside the remote control shell
2. Long life metal dome buttons, capable of more than 100,000 time keystrokes
3. Anti scratch, fade proof and wear resistant PET front panel
4. Good bending resistant FPC connector, suitable for frequent folding
5. Custom acceptable parameters, low order support with MOQ of 100 units
Mainly applied to massage chair handheld remote controllers, fitness equipment control panels and other household device operation keypads.
Custom FPC Integrated LCD Window Tactile Membrane Keypad For Massage Chair Remote Controller, MOQ 100
