Primary level category:Ⅰ. Flat type Membrane Switch
Secondary level category 1: Tactile Flat Membrane Switch
Secondary level category 2: Non window Flat Membrane Switch
1. Overall dimension: 168 mm (height) × 46 mm (width)
2. Cable: 10 pin green PET flexible flat ribbon cable
3. MOQ (Minimum Order Quantity): 100 pieces
4. Key structure: Built in metal dome tactile contacts with clear pressing feedback
5. Structure: Separated overlay panel and circuit layer base plate

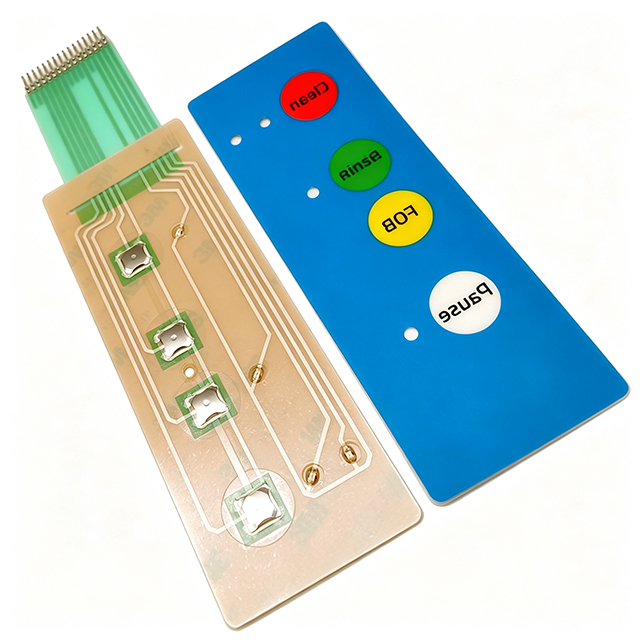

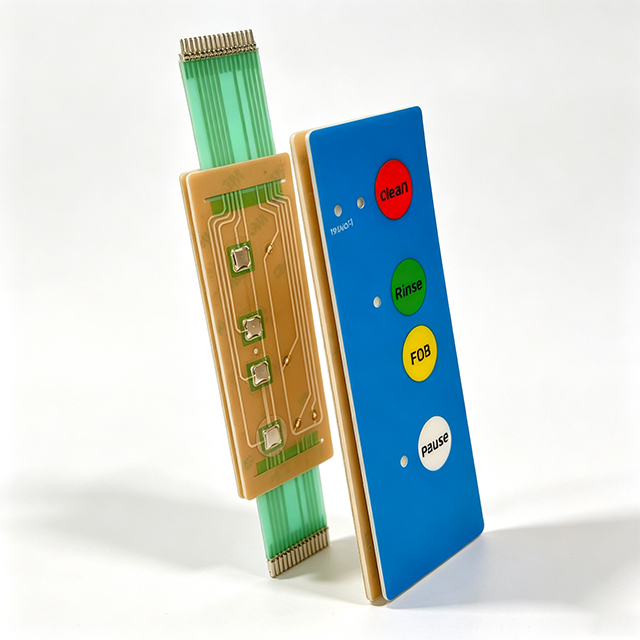

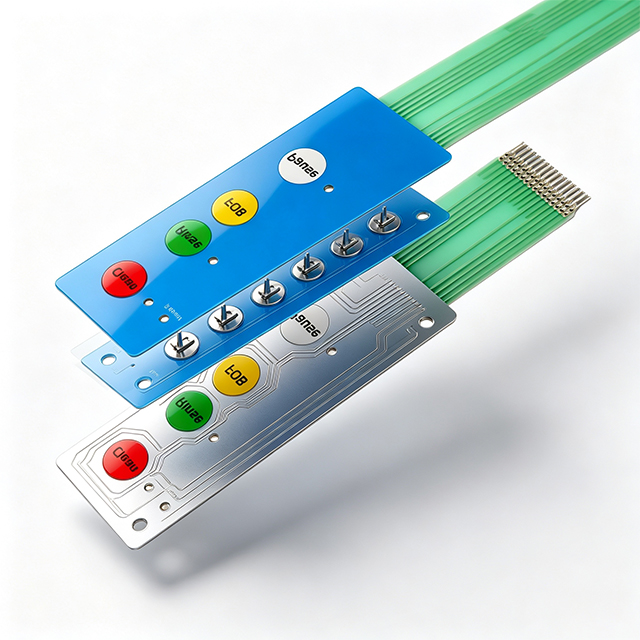

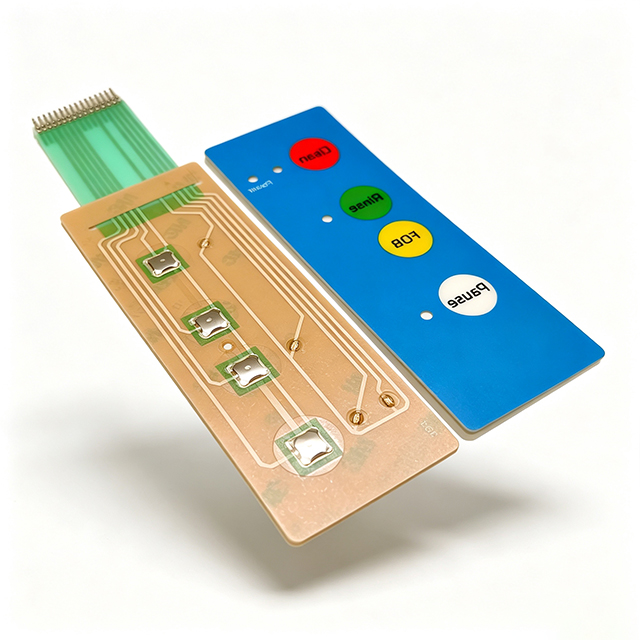

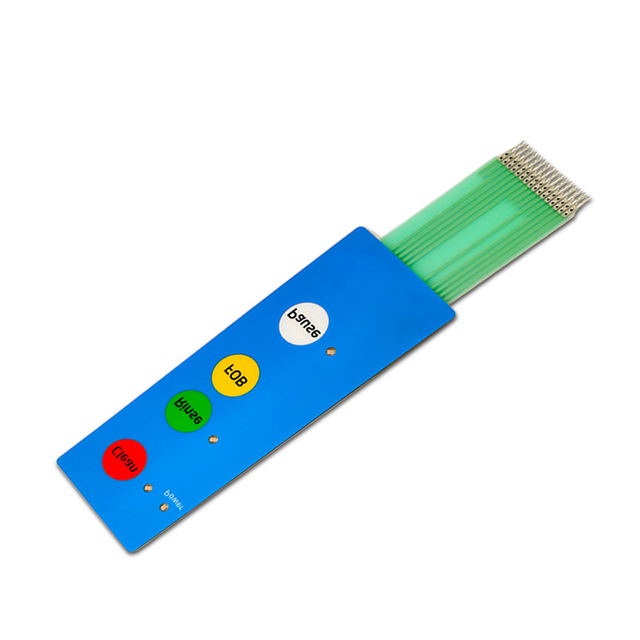

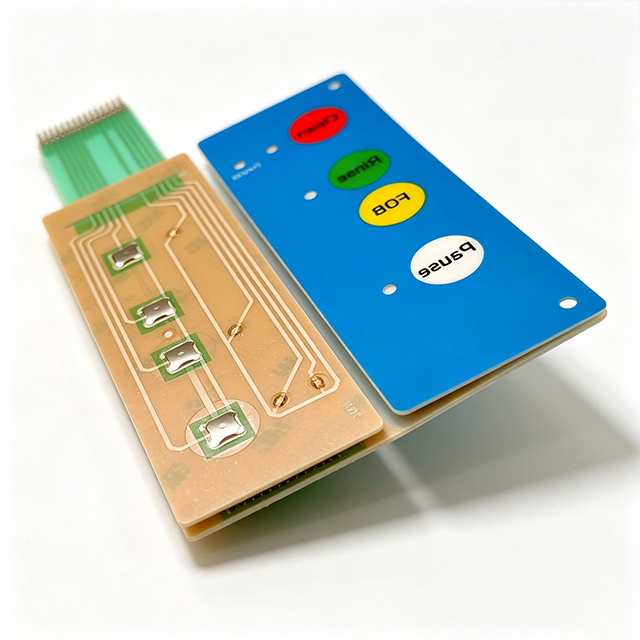

This long strip split style membrane keypad is customized for household and industrial equipment operation panels. It adopts a two piece separated design, including a blue silk screened PET front overlay and an independent circuit base board with silver ink printed circuits. Four metal dome switches are welded on the circuit layer to deliver crisp tactile rebound while pressing. Color coded function buttons for clean, rinse, fob and pause are printed on the bright blue surface panel. Pre set mounting holes are reserved for fast installation. The green flexible flat cable features outstanding bending endurance and stable signal transmission. Custom made service is supported, including strip size, key layout, silk screen text, cable pins, cable length and surface layer colour.
1. Bright wear resistant PET faceplate, anti fading screen printed function labels
2. Independent metal dome keys, over 100,000 times pressing service life
3. Split type layered construction, convenient for maintenance and replacement
4. Fold resistant green flat ribbon cable, good for narrow space installation
5. Custom available, minimum order quantity of 100 units
Small size appliance control panel, cleaning machine keypad, automated device operation membrane keyboard
Custom Long Strip Split Tactile Flat Membrane Switch, Equipment Control Keypad MOQ 100
