Oval Tactile Flat Type Membrane Switch, Lifting Equipment Controller Keypad

Product Classification

• Primary level category: Ⅰ. Flat type Membrane Switch

• Secondary level category 1: Tactile Flat Membrane Switch

• Secondary level category 2: Non window Flat Membrane Switch

Basic Specifications

1. Overall dimension: 135 mm (height) × 72 mm (width)

2. Cable：10 pin silver ink PET flexible flat ribbon cable

3. MOQ (Minimum Order Quantity): 100 pieces

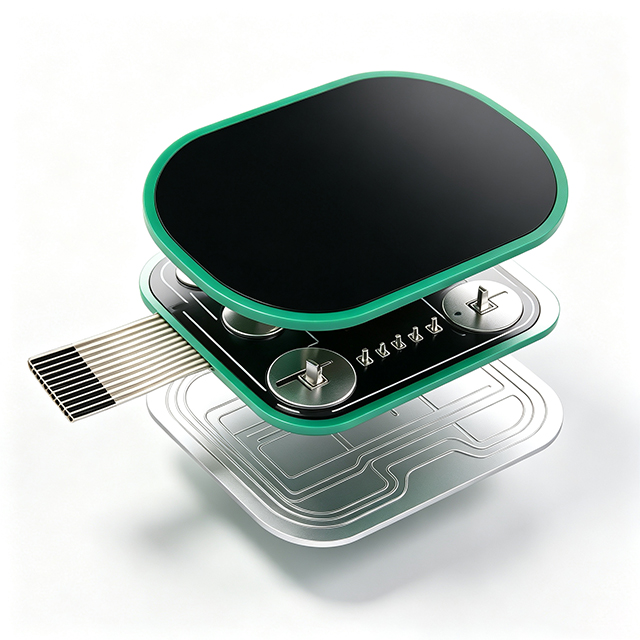

4. Key structure: Built in metal dome tactile contacts with crisp pressing feedback

Detailed Description

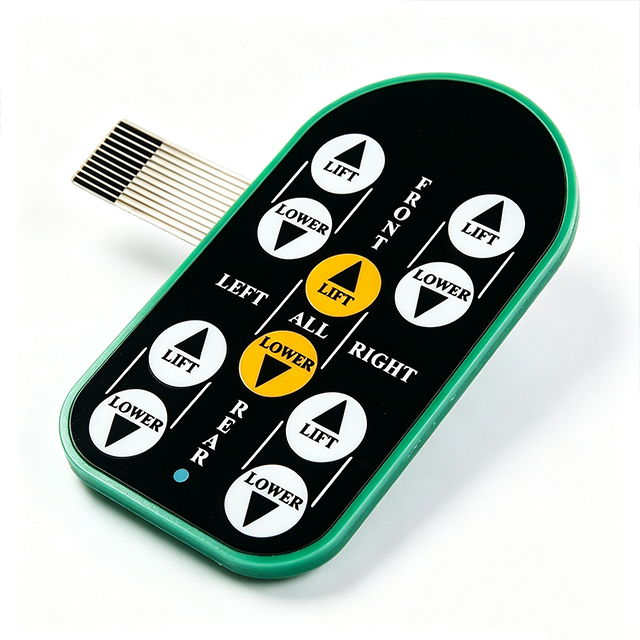

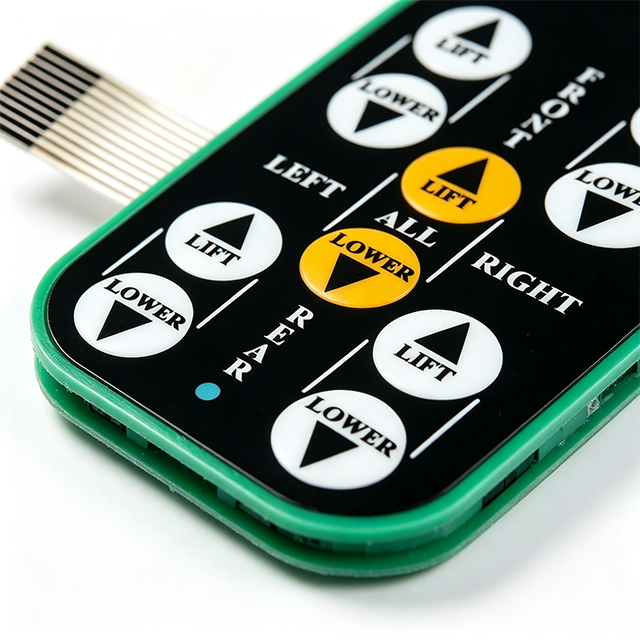

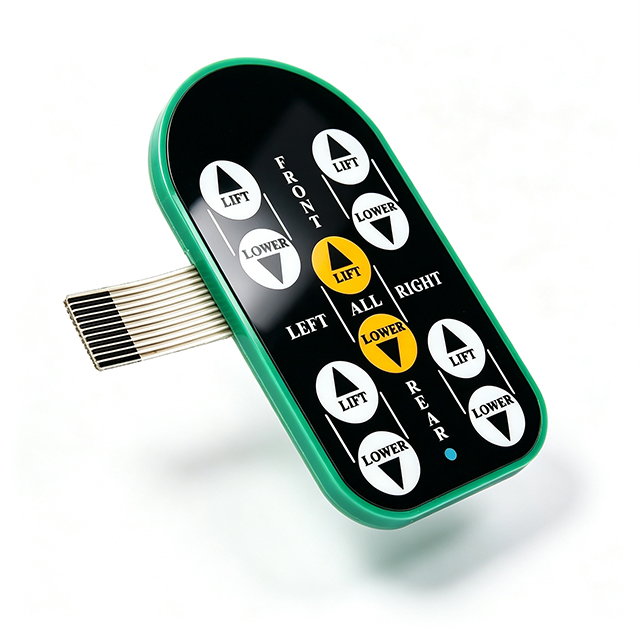

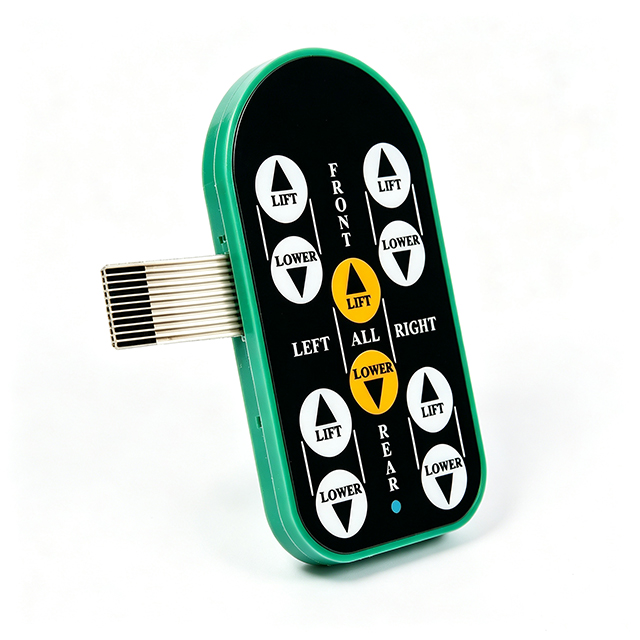

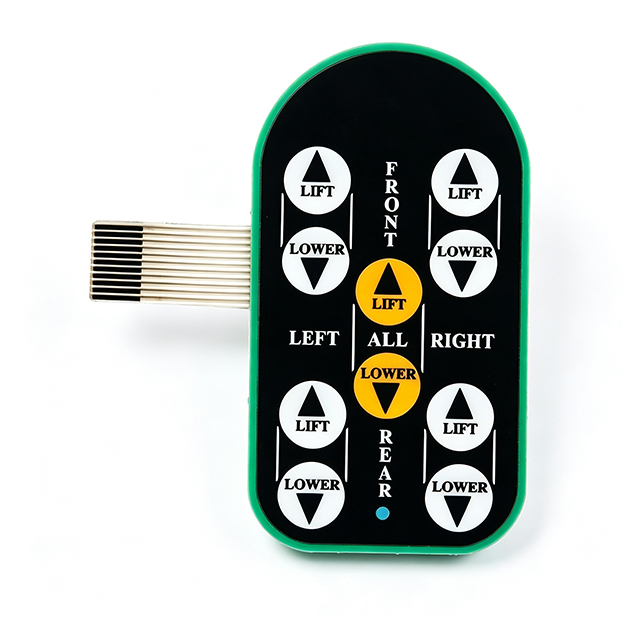

This custom oval membrane keypad is specially used for the lift and lower controller of industrial grade machinery. It belongs to flat style membrane switch without raised buttons and display cut out window. The high gloss black PET front panel is screen printed with white yellow lifting control function keys and operation marks, surrounded by green edge trim. Every operating key is fitted with built in metal domes, delivering clear tactile rebound when pressed. The silver paste printed flexible cable features great bending resistance and steady signal transmission. Custom made service is available, including outline shape, key layout, silk screen printing, cable pin number and cable length.

Core Advantages

1. Smooth, scratch resistant PET overlay, wear resistant printing for long time industrial usage

2. Sensitive metal dome keys, service life over 100,000 time presses

3. Compact oval outline, convenient for installation on handheld control devices

4. Fold resistant silver ink circuit flat cable, stable connection

5. Custom acceptable, minimum order quantity of 100 units

Application

Mechanical lifting controller, vehicle mounted adjustment keypad, industrial handheld operation panel
